LSAW PIPE
BRISK STEEL LSAW PIPE
Ncaj seam welded steel yeeb nkab (lsaw steel yeeb nkab), Ob-sided submerged arc vuam steel yeeb nkab (dsaw steel yeeb nkab),
longitudinal submerged arc welded steel yeeb nkab, siab zaus ncaj seam welded yeeb nkab
Qib ntawm LSAW Steel Pipe:
Rau cov kav dej: API 5L GR.B, X42, X45, X50, X60, X60, X65, X70, X80

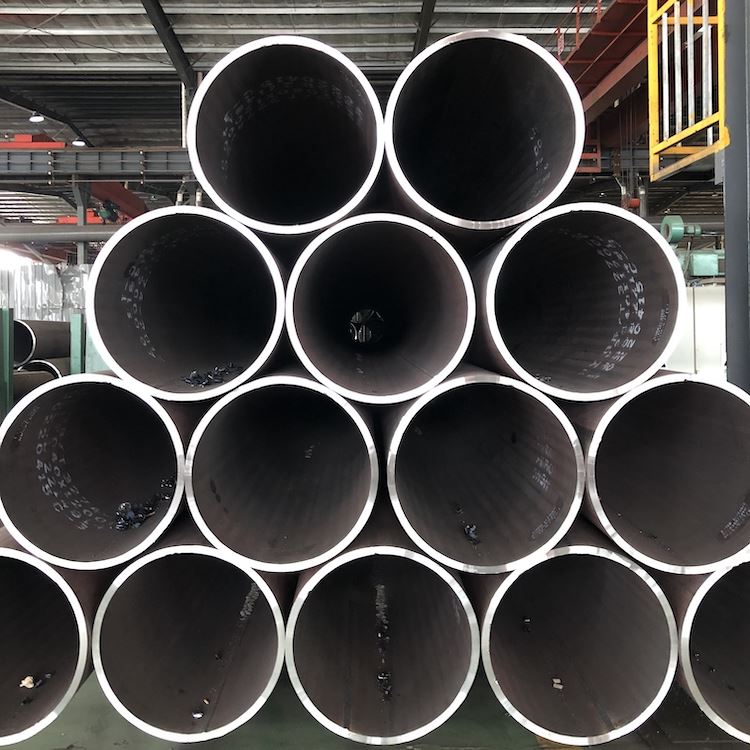

Rau pawg: ASTM A252
Qhov ntau thiab tsawg ntawm LSAW Steel Pipe:
OD: 16"-72"
|
O.D. |
W.T. |
Ntev (m) |
|||||||
|
Ntiv |
mm |
Min.Yield zog (Mpa) |
|||||||
|
Ntiv |
mm |
245(B) |
290(X42) |
360(X52) |
415(X60) |
450(X65) |
485(X70) |
555(X80) |
|
|
16 |
406 |
6.0-14.0 |
6.0-13.0 |
6.0-12.0 |
6.0-11.0 |
6.0-10.5 |
6.0-10.0 |
6.0-9.0 |
6.0-12.3 |
|
18 |
457 |
6.0-15.0 |
6.0-14.0 |
6.0-13.0 |
6.0-12.0 |
6.0-11.5 |
6.0-11.0 |
6.0-10.0 |
6.0-12.3 |
|
20 |
508 |
6.0-16.0 |
6.0-15.0 |
6.0-14.0 |
6.0-13.0 |
6.0-12.5 |
6.0-12.0 |
6.0-11.0 |
6.0-12.3 |
|
22 |
559 |
6.0-17.0 |
6.0-16.0 |
6.0-15.0 |
6.0-14.0 |
6.0-13.5 |
6.0-13.0 |
6.0-12.0 |
6.0-12.3 |
|
24 |
610 |
6.0-18.0 |
6.0-17.0 |
6.0-16.0 |
6.0-15.0 |
6.0-14.5 |
6.0-14.0 |
6.0-13.0 |
6.0-12.3 |
|
26 |
660 |
6.0-19.0 |
6.0-18.0 |
6.0-17.0 |
6.0-16.0 |
6.0-15.0 |
6.0-15.0 |
6.0-14.0 |
6.0-12.3 |
|
28 |
711 |
6.0-20.0 |
6.0-19.0 |
6.0-18.0 |
6.0-17.0 |
6.0-16.5 |
6.0-16.0 |
6.0-15.0 |
6.0-12.3 |
|
30 |
762 |
7.0-21.0 |
7.0-20.0 |
7.0-19.0 |
7.0-18.0 |
7.0-17.5 |
7.0-17.0 |
7.0-16.0 |
6.0-12.3 |
|
32 |
813 |
7.0-22.0 |
7.0-21.0 |
7.0-20.0 |
7.0-19.0 |
7.0-18.5 |
7.0-18.0 |
7.0-17.0 |
6.0-12.3 |
|
34 |
864 |
7.0-23.0 |
7.0-22.0 |
7.0-21.0 |
7.0-20.0 |
7.0-19.5 |
7.0-19.0 |
7.0-18.0 |
6.0-12.3 |
|
36 |
914 |
8.0-24.0 |
8.0-23.0 |
8.0-22.0 |
8.0-21.0 |
8.0-20.5 |
8.0-20.0 |
8.0-19.0 |
6.0-12.3 |
|
38 |
965 |
8.0-25.0 |
8.0-24.0 |
8.0-23.0 |
8.0-22.0 |
8.0-21.5 |
8.0-21.0 |
8.0-20.0 |
6.0-12.3 |
|
40 |
1016 |
8.0-26.0 |
8.0-25.0 |
8.0-24.0 |
8.0-23.0 |
8.0-22.5 |
8.0-22.0 |
8.0-21.0 |
6.0-12.3 |
|
42 |
1067 |
8.0-26.0 |
8.0-25.0 |
8.0-24.0 |
8.0-23.0 |
8.0-22.5 |
8.0-22.0 |
8.0-21.0 |
6.0-12.3 |
|
44 |
1118 |
9.0-27.0 |
9.0-26.0 |
9.0-24.5 |
9.0-23.5 |
9.0-22.8 |
9.0-22.0 |
9.0-21.0 |
6.0-12.3 |
|
46 |
1168 |
9.0-27.0 |
9.0-26.0 |
9.0-24.0 |
9.0-23.5 |
9.0-22.8 |
9.0-22.0 |
9.0-21.0 |
6.0-12.3 |
|
48 |
1219 |
9.0-28.0 |
9.0-27.0 |
9.0-25.4 |
9.0-24.0 |
9.0-23.5 |
9.0-23.0 |
9.0-22.0 |
6.0-12.3 |
|
52 |
1321 |
9.0-28.0 |
9.0-27.0 |
9.0-25.4 |
9.0-24.2 |
9.0-23.5 |
9.0-23.0 |
9.0-22.0 |
6.0-12.3 |
|
56 |
1422 |
10.0-29.0 |
10.0-28.0 |
10.0-26.0 |
10.0-24.5 |
10.0-23.8 |
10.0-23.0 |
10.0-22.0 |
6.0-12.3 |
|
60 |
1524 |
10.0-29.0 |
10.0-28.0 |
10.0-26.0 |
10.0-24.5 |
10.0-23.8 |
10.0-23.0 |
10.0-22.0 |
6.0-12.3 |
|
64 |
1626 |
10.0-30.0 |
10.0-29.0 |
10.0-27.0 |
10.0-25.4 |
10.0-24.8 |
10.0-24.0 |
10.0-23.0 |
6.0-12.3 |
|
68 |
1727 |
10.0-30.0 |
10.0-29.0 |
10.0-27.0 |
10.0-25.4 |
10.0-24.8 |
10.0-24.0 |
10.0-23.0 |
6.0-12.3 |
|
72 |
1829 |
10.0-30.0 |
10.0-29.0 |
10.0-27.0 |
10.0-25.4 |
10.0-24.8 |
10.0-24.0 |
10.0-23.0 |
6.0-12.3 |
Kev kam rau sab nraud thiab phab ntsa Thickness ntawm LSAW Steel Yeeb Nkab
|
Hom |
Txuj |
|||||
|
SY/T 5040-2000 |
SY/T 5037-2000 |
SY/T9711 1-1977 |
ASTM A252, ASTM A252 |
AWWA C200-97 |
API 5L PSL1 |
|
|
Tube kawg OD sib txawv |
±0.5%D |
±0.5%D |
-0.79mm -+2.38mm |
<±0.1%T |
<±0.1%T |
± 1.6 hli |
|
Phab ntsa thickness |
±10.0%T |
D<508mm, ±12.5%T |
-8%T-+19.5%T |
<-12.5%T |
-8%T-+19.5%T |
5. 0mm |
|
D>5 08 hli, ± 10.0% T |
T Ntau dua lossis sib npaug rau 15.0mm, ± 1.5mm |
|||||
Chemical Composition thiab Mechanical Properties of LSAW Steel Pipe
|
Txuj |
Qib |
Tshuaj muaj pes tsawg leeg (max)% |
Mechanical Properties (min) |
|||||
|
C |
Mn |
Si |
S |
P |
Yield zog (Mpa) |
Tensile zog (Mpa) |
||
|
GB/T 700-2006 |
A |
0.22 |
1.4 |
0.35 |
0.050 |
0.045 |
235 |
370 |
|
B |
0.2 |
1.4 |
0.35 |
0.045 |
0.045 |
235 |
370 |
|
|
C |
0.17 |
1.4 |
0.35 |
0.040 |
0.040 |
235 |
370 |
|
|
D |
0.17 |
1.4 |
0.35 |
0.035 |
0.035 |
235 |
370 |
|
|
GB/T 1591-2009 |
A |
0.2 |
1.7 |
0.5 |
0.035 |
0.035 |
345 |
470 |
|
B |
0.2 |
1.7 |
0.5 |
0.030 |
0.030 |
345 |
470 |
|
|
C |
0.2 |
1.7 |
0.5 |
0.030 |
0.030 |
345 |
470 |
|
|
TS EN 10025 |
S235 JR |
0.17 |
1.4 |
- |
0.035 |
0.035 |
235 |
360 |
|
S275 JR |
0.21 |
1.5 |
- |
0.035 |
0.035 |
275 |
410 |
|
|
S355 JR |
0.24 |
1.6 |
- |
0.035 |
0.035 |
355 |
470 |
|
|
TIAB SA 17100 |
ST 37-2 |
0.2 |
- |
- |
0.050 |
0.050 |
225 |
340 |
|
ST 44-2 |
0.21 |
- |
- |
0.050 |
0.050 |
265 |
410 |
|
|
ST 52-3 |
0.2 |
1.6 |
0.55 |
0.040 |
0.040 |
345 |
490 |
|
|
JIS G3101 |
SIB 400 |
- |
- |
- |
0.050 |
0.050 |
235 |
400 |
|
SIB 490 |
- |
- |
- |
0.050 |
0.050 |
275 |
490 |
|
|
API 5L PSL1 |
A |
0.22 |
0.9 |
- |
0.03 |
0.03 |
210 |
335 |
|
B |
0.26 |
1.2 |
- |
0.03 |
0.03 |
245 |
415 |
|
|
X42 |
0.26 |
1.3 |
- |
0.03 |
0.03 |
290 |
415 |
|
|
X46 |
0.26 |
1.4 |
- |
0.03 |
0.03 |
320 |
435 |
|
|
X52 |
0.26 |
1.4 |
- |
0.03 |
0.03 |
360 |
460 |
|
|
X56 |
0.26 |
1.1 |
- |
0.03 |
0.03 |
390 |
490 |
|
|
X60 |
0.26 |
1.4 |
- |
0.03 |
0.03 |
415 |
520 |
|
|
X65 |
0.26 |
1.45 |
- |
0.03 |
0.03 |
450 |
535 |
|
|
X70 |
0.26 |
1.65 |
- |
0.03 |
0.03 |
585 |
570 |
|
