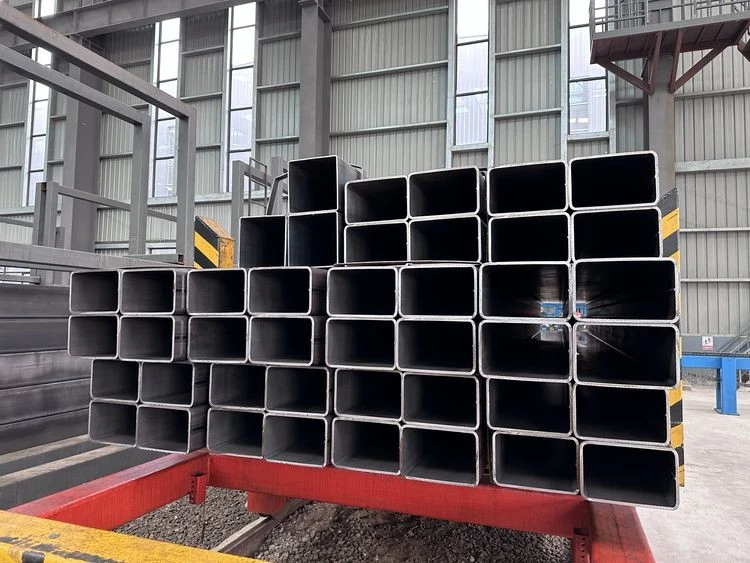

Rectangular Tube & Pipe, Rectangular Hollow Section (RHS), Carbon SteelRectangularTube,RectangularCov qauv steel tubing
Hom Lub Npe: BRISK STEEL
Txuj
EN 10210: S235JRH, S355J2H, S355NH
TS EN 10219: S{1}}S550
ASTM A500: Gr.b
ASTM A501: Gr.b
JIS G3466 STKR490
NZS/AS1163 C350L0 C450L0
Qhov ntau thiab tsawg:RHS 20MM X 30MM -- 1200MM X 1000MM WT: 1.5MM-50MM LENGTH:1-35M
Hom
Stainless hlau square tube,
Galvanized square raj,
MS rectangular tube
Rectangular Tube:Ib lub raj raj yog lub hollow rectangular cross-section lub teeb nyias nyias-walled steel raj, uas yog, lub raj steel nrog tsis sib npaug sab ntev. Nws cov qauv yog qhov yooj yim thiab ruaj khov, thiab nws muaj peev xwm thauj khoom siab. Cov specifications ntawm square tubes feem ntau qhia nyob rau hauv cov nqe lus ntawm sab ntev thiab phab ntsa thickness.
Rectangular raj muab faib ua seamless thiab welded. Seamless rectangular raj yog tsim los ntawm perforating thiab extruding seamless round raj. Welded rectangular raj yog dov los ntawm sawb hlau los ntawm txoj kev kho. Feem ntau, cov sawb hlau yog unpacked, flattened, curled, thiab welded los ua ib lub raj puag ncig. Lub raj puag ncig yog ces dov mus rau hauv ib lub raj raj thiab ces txiav mus rau qhov ntev yuav tsum tau.
Cov yam ntxwv ntawm rectangular tube:
Lub zog siab: Cov raj plaub muaj lub zog tensile siab, compressive thiab dabtsi yog khoov zog, tuaj yeem tiv taus cov khoom loj thiab kev kub ntxhov, thiab tsim nyog rau kev ua ntau yam qauv.
Kev ruaj ntseg zoo: Lub raj duab plaub muaj qhov tseeb qhov tseeb, cov qauv ruaj khov, thiab tsis yooj yim rau deform, uas tuaj yeem xyuas kom meej tias cov khoom ua tiav muaj qhov siab thiab ruaj khov.
Zoo corrosion kuj: Tom qab kev kho deg xws li galvanizing thiab yas txau, cov yeeb nkab duab plaub muaj kev tiv thaiv corrosion zoo thiab tuaj yeem hloov mus rau ntau qhov chaw ib puag ncig.
Tus nqi qis: Tus nqi tsim khoom ntawm cov raj duab plaub yog qhov tsawg, yooj yim rau kev ua, thiab tsim nyog rau kev tsim khoom loj thiab daim ntawv thov.
Rectangular Tube Loj:
|
SIZEmm |
NYIAJ kg/m |
EST. LBS. PIB FT. |
|
SIZE mm |
NYIAJ kg/m |
|
| EST. LBS. PIB FT. | ||||||
|
40 x 20 x 1.60 |
1.380 |
0.93 |
150 x 100 x 6.30 |
22.400 |
15.08 |
|
|
40 x 20 x 2.60 |
2.100 |
1.41 |
150 x 100 x 8.00 |
27.700 |
18.64 |
|
|
50 x 30 x 1.60 |
1.880 |
1.27 |
150 x 100 x 10.00 |
35.714 |
24.04 |
|
|
50 x 30 x 2.60 |
2.920 |
1.97 |
160 x 80 x 3.20 |
11.500 |
7.74 |
|
|
50 x 30 x 2.90 |
3.320 |
2.23 |
160 x 80 x 4.00 |
14.300 |
9.62 |
|
|
50 x 30 x 3.20 |
3.490 |
2.35 |
160 x 80 x 5.00 |
17.400 |
11.71 |
|
|
50 x 30 x 4.00 |
4.410 |
2.97 |
160 x 80 x 6.30 |
21.400 |
14.40 |
|
|
60 x 40 x 2.60 |
3.730 |
2.51 |
160 x 80 x 8.00 |
26.400 |
17.77 |
|
|
60 x 40 x 2.90 |
4.230 |
2.85 |
160 x 80 x 10.00 |
32.545 |
21.87 |
|
|
60 x 40 x 3.20 |
4.500 |
3.03 |
160 x 90 x 4.50 |
16.600 |
11.17 |
|
|
60 x 40 x 4.00 |
5.670 |
3.82 |
160 x 90 x 5.60 |
20.400 |
13.73 |
|
|
70 x 40 x 2.90 |
4.690 |
3.16 |
160 x 90 x 7.10 |
25.300 |
17.03 |
|
|
70 x 40 x 4.00 |
6.300 |
4.24 |
160 x 90 x 8.80 |
30.500 |
20.53 |
|
|
80 x 40 x 2.60 |
4.550 |
3.06 |
160 x 90 x 10.00 |
34.100 |
22.95 |
|
|
80 x 40 x 2.90 |
5.140 |
3.46 |
180 x 100 x 4.00 |
16.800 |
11.31 |
|
|
80 x 40 x 3.20 |
5.500 |
3.70 |
180 x 100 x 5.00 |
20.500 |
13.80 |
|
|
80 x 40 x 4.00 |
6.930 |
4.66 |
180 x 100 x 5.60 |
23.000 |
15.48 |
|
|
80 x 40 x 5.00 |
8.470 |
5.70 |
180 x 100 x 6.30 |
25.400 |
17.09 |
|
|
80 x 40 x 6.30 |
10.400 |
7.00 |
180 x 100 x 7.10 |
28.600 |
19.25 |
|
|
90 x 50 x 2.60 |
5.370 |
3.61 |
180 x 100 x 8.80 |
34.700 |
23.35 |
|
|
90 x 50 x 3.20 |
6.640 |
4.47 |
180 x 100 x 10.00 |
38.800 |
26.11 |
|
|
90 x 50 x 4.00 |
8.180 |
5.51 |
180 x 100 x 12.50 |
46.900 |
31.56 |
|
|
90 x 50 x 5.00 |
10.000 |
6.73 |
200 x 100 x 4.00 |
18.000 |
12.11 |
|
|
90 x 50 x 6.30 |
12.300 |
8.28 |
200 x 100 x 5.00 |
22.100 |
14.20 |
|
|
90 x 50 x 7.10 |
13.700 |
9.22 |
200 x 100 x 6.30 |
27.400 |
18.44 |
|
|
100 x 50 x 3.60 |
7.980 |
5.37 |
200 x 100 x 8.00 |
34.000 |
22.88 |
|
|
100 x 50 x 4.50 |
9.830 |
6.62 |
200 x 100 x 10.00 |
40.600 |
27.32 |
|
|
100 x 50 x 5.60 |
12.000 |
8.08 |
200 x 120 x 4.00 |
19.300 |
12.99 |
|
|
100 x 50 x 7.10 |
14.800 |
9.96 |
200 x 120 x 5.00 |
23.700 |
15.95 |
|
|
100 x 50 x 8.00 |
16.400 |
11.04 |
200 x 120 x 6.30 |
29.600 |
19.92 |
|
|
100 x 60 x 3.20 |
7.510 |
5.05 |
200 x 120 x 8.00 |
36.500 |
24.56 |
|
|
100 x 60 x 3.60 |
8.550 |
5.75 |
200 x 120 x 8.80 |
36.900 |
24.83 |
|
|
100 x 60 x 4.50 |
10.500 |
7.07 |
200 x 120 x 10.00 |
45.100 |
31.62 |
|
|
100 x 60 x 5.60 |
12.900 |
8.68 |
200 x 120 x 12.50 |
54.700 |
38.87 |
|
|
100 x 60 x 6.30 |
13.500 |
9.09 |
200 x 120 x 14.20 |
60.900 |
43.64 |
|
|
100 x 60 x 7.10 |
15.900 |
10.70 |
220 x 80 x 6.00 |
26.816 |
18.02 |
|
|
100 x 60 x 8.80 |
19.200 |
12.92 |
220 x 120 x 6.30 |
31.600 |
21.27 |
|
|
100 x 80 x 6.3 |
16.370 |
11.02 |
220 x 120 x 8.00 |
39.400 |
26.52 |
|
|
110 x 60 x 3.60 |
9.050 |
6.09 |
220 x 120 x 10.00 |
46.200 |
31.09 |
|
|
110 x 60 x 4.50 |
11.100 |
7.47 |
220 x 120 x 12.50 |
58.700 |
39.51 |
|
|
110 x 60 x 5.60 |
13.600 |
9.15 |
220 x 120 x 14.20 |
65.400 |
44.01 |
|
|
110 x 60 x 7.10 |
16.800 |
11.31 |
250 x 150 x 5.00 |
29.900 |
20.12 |
|
|
110 x 60 x 8.80 |
20.100 |
13.53 |
250 x 150 x 6.30 |
37.300 |
25.10 |
|
|
110 x 70 x 3.20 |
8.510 |
5.73 |
250 x 150 x 8.00 |
46.500 |
31.29 |
|
|
110 x 70 x 4.00 |
10.800 |
7.27 |
250 x 150 x 10.00 |
56.300 |
37.89 |
|
|
110 x 70 x 5.00 |
12.700 |
8.55 |
250 x 150 x 12.50 |
68.300 |
45.97 |
|
|
110 x 70 x 6.30 |
15.500 |
10.43 |
260 x 140 x 6.30 |
37.500 |
25.23 |
|
|
120 x 60 x 3.20 |
8.510 |
5.73 |
260 x 140 x 8.00 |
46.900 |
31.56 |
|
|
120 x 60 x 4.00 |
10.600 |
7.13 |
260 x 140 x 10.00 |
57.600 |
38.76 |
|
|
120 x 60 x 5.00 |
13.000 |
8.75 |
260 x 140 x 12.50 |
70.400 |
47.38 |
|
|
120 x 60 x 6.30 |
16.100 |
10.84 |
260 x 140 x 14.20 |
78.800 |
53.03 |
|
|
120 x 60 x 7.10 |
17.900 |
12.05 |
260 x 180 x 6.30 |
41.500 |
27.93 |
|
|
120 x 60 x 8.80 |
21.500 |
14.47 |
260 x 180 x 8.00 |
52.000 |
35.00 |
|
|
120 x 80 x 3.20 |
12.100 |
8.14 |
260 x 180 x 10.00 |
63.900 |
43.00 |
|
|
120 x 80 x 6.30 |
17.500 |
11.78 |
260 x 180 x 12.50 |
78.300 |
52.70 |
|
|
140 x 70 x 4.00 |
12.500 |
8.41 |
260 x 180 x 14.20 |
87.700 |
59.02 |
|
|
140 x 70 x 5.00 |
15.400 |
10.36 |
300 x 100 x 5.00 |
30.268 |
20.34 |
|
|
140 x 70 x 6.30 |
19.000 |
12.79 |
300 x 100 x 8.00 |
47.679 |
32.04 |
|
|
140 x 70 x 7.10 |
21.200 |
14.27 |
300 x 100 x 10.00 |
58.979 |
39.63 |
|
|
140 x 70 x 8.80 |
25.600 |
17.23 |
300 x 200 x 5.00 |
37.800 |
25.44 |
|
|
140 x 80 x 3.20 |
10.500 |
7.07 |
300 x 200 x 6.30 |
47.100 |
31.70 |
|
|
140 x 80 x 4.00 |
13.100 |
8.82 |
300 x 200 x 8.00 |
59.100 |
39.77 |
|
|
140 x 80 x 5.00 |
16.200 |
10.90 |
300 x 200 x 10.00 |
72.000 |
48.46 |
|
|
140 x 80 x 6.30 |
20.000 |
13.46 |
300 x 200 x 12.00 |
88.000 |
59.22 |
|
|
140 x 80 x 8.00 |
24.800 |
16.69 |
||||
|
140 x 80 x 10.00 |
30.200 |
20.32 |
||||
|
150 x 100 x 3.20 |
12.000 |
8.08 |
||||
|
150 x 100 x 4.00 |
14.900 |
10.03 |
