Tianjin Brisk Metalwork Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm txoj kab uas hla loj steel yeeb nkab hauv Suav teb. Peb muaj lub ntiaj teb- cov cuab yeej tsim khoom thiab muaj peev xwm tsim tau zoo. Thov koj xav tias dawb mus yuav bulk check loj txoj kab uas hla steel yeeb nkab los ntawm peb lub hoobkas.
Tianjin Brisk Steel yog ib qho ntawm cov tuam ntxhab ntawm High Strength LSAW Yeeb Nkab hauv Suav teb. Peb cov khoom raug xa tawm mus rau Middle East, Southeast Asia, Europe, New Zealand, thiab lwm thaj chaw.Yog tias koj xav paub ntau ntxiv txog peb cov khoom, thov hu rau peb thiab xa koj daim ntawv yuav khoom.
KHOOM
Tianjin Brisk Steeltsom rau cov khoom tsim thiab muab cov seem hollow thiab steel yeeb nkab
Khoom txhais
Loj-inch steel yeeb nkab feem ntau yog hais txog cov kab sab nraud Ntau dua lossis sib npaug li 406 hli (16 nti) carbon-steel yeeb nkab, peb muab 3 pawg:
-

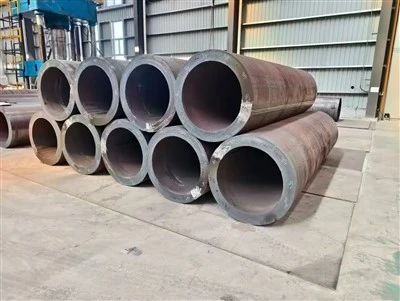

LSAW Pipe (Longitudinal Submerged-Arc Welded Pipe)
Txheej txheem: JCOE / UOE txoj kev, ob-sided submerged-arc vuam
Qhov zoo tshaj plaws: Cov roj ntsha siab siab & cov kav dej hauv lub cev, kev ua haujlwm sab nrauv, qhov hnyav-load piling
OD: 406mm-1626mm
-
SSAW / HSAW Pipe (Spiral Submerged-Arc Welded Pipe)
Txheej Txheem: Hlau coil kauv txoj kev + SAW vuam
Qhov zoo tshaj plaws: Kev xa dej, kev tso dej, dej phwj tuaj, kev xa dej tsis tshua muaj siab, kev sib tw hauv av
OD: 219mm-3500mm (ntxiv-loj kab muaj)
-
Loj-inch Seamless Steel Pipe (SMLS)
Txheej txheem: Kub dov / kub extrusion, tsis muaj vuam seam
Qhov zoo tshaj plaws: Kev ua haujlwm siab, kev ua haujlwm siab kub
Max ntau OD: 660 mm-914 mm
- Brisk Steel Pom Zoo:High-pressure zog pipeline → xaiv LSAW; Loj-ntim dej infrastructure / piling → xaiv SSAW, tus nqi ntau dua.
Qhov Loj (Customizable)
- Sab nraud txoj kab uas hla (OD):219 hli ~ 3500 hli
- Phab ntsa Thickness (WT):5mm-75 hli
- Ntev:6m, 9m, 12m standard random ntev; taag txiav-ntev 3-48 m muaj
- Cov yeeb nkab kawg:Plain kawg / Beveled kawg (30℃bevel rau thaj chaw vuam); bevelling tiv thaiv nplhaib yeem
- Dimensional kam rau ua:Ua raws li API-5L, EN, ASTM kam rau ua raws li OD, phab ntsa thickness, ncaj, ovality
Muaj Cov Qib Khoom
Carbon Steel Qib
- API 5L: Gr.B, X42, X46, X52, X56, X60, X65, X70 (PSL-1 / PSL-2)
- ASTM A53 Gr.B, A106 Gr.B, A252 Gr.1/2/3
- European: S235JR, S355JR, S355J2H
Daim ntawv thov pom zoo
- Roj & roj:API 5L
- Structure/piling:ASTM A252, EN 10219-1
- Kev pabcuam kua:ASTM A53, A106, EN 10217-1
- Cov kav dej: AWWA C200
Kev Tsim Kho Tshuab & Kev Tswj Xyuas Zoo
Kev tsim cov kab loj loj LSAW Steel Yeeb Nkab
- Cov khoom nyoos: High -cov pa roj carbon steel phaj nrog cov tshuaj ruaj khov, tsis muaj impurity, lav lub zog thiab toughness
- Txoj kev tsim: Advanced JCOE txias forming technology, tsis muaj kev puas tsuaj rau steel qauv
- Vuam txheej txheem: Ob npaug -sided multi- dhau submerged arc vuam, puv weld nkag, weld lub zog zoo ib yam nrog lub hauv paus hlau
- Txias nthuav dav: Tshem tawm cov kev ntxhov siab seem, xyuas kom meej cov yeeb nkab roundness thiab ncaj
- Kev tshuaj xyuas tag nrho NDT: 100% Ultrasonic Testing (UT), 100% Radiographic Test (RT), Hydrostatic Test, Khoov test, Charpy impact test
Surface & Anti-Corrosion Coating Options
- Bare dub yeeb nkab ( zeb tiav, roj los tiv thaiv xeb)
- Dub kua roj vanish / epoxy xim
- 3-LPE (3-txheej polyethylene)- nrov tshaj plaws faus-pipe anti-corrosion,-45℃~ 80℃ua haujlwm temp
- 3-LPP, FBE (Fusion Bonded Epoxy)
- Internal hauv ob sab phlu: Cement mortar hauv ob sab phlu rau potable-dej pipeline
Kev kho saum npoo
LSAW vs SSAW vs SMLS Steel Yeeb Nkab - Kev Qhia Ntawv Thov Kev Pabcuam
LSAW Pipe (Longitudinal Submerged Arc Welded Yeeb Nkab)
- Ntau lawm Feature:Tsim los ntawm JCOE / UOE txheej txheem txias txias, ib leeg hlau phaj sib sau, ob -sided submerged arc vuam, thiab tag nrho txias nthuav dav. Nws nta siab roundness, tsis tshua muaj kev ntxhov siab, ruaj khov weld kev ua tau zoo thiab nruj me ntsis kam rau ua.
- OD Ntau:406-1626 hli
- Main Application Fields:
- Siab -siab ntev- deb ntawm ntug dej hiav txwv roj thiab roj kav kav dej (API 5L PSL2)
- Offshore / subsea pipeline tej yaam num
- River, railway thiab txoj kev loj hla cov kav dej
- Hnyav- lub hauv paus piling rau txuas hniav, chaw nres nkoj, offshore platforms thiab siab -nce vaj tse
- Tsawg-qhov kub thiab txias hauv cheeb tsam roj & roj cov haujlwm yuav tsum tau kuaj Charpy (-20℃/ -40 degree)
- Thick-phab ntsa siab- cov txheej txheem siab cov kav dej rau refinery thiab chaw nres tsheb fais fab
- Tsis haum rau:Ultra- txoj kab uas hla loj thiab qis- cov phiaj xwm dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav dav hlau cov kav dej (cov nqi ua haujlwm siab).
SSAW Yeeb Nkab (Kub Kauv Submerged Arc Welded Pipe)
- Ntau lawm Feature:Tsim los ntawm steel coil nruam kauv dov thiab ob -sided submerged arc vuam. Nws txhawb ultra- txoj kab uas hla loj ntau lawm nrog tus nqi qis thiab kev ua haujlwm siab.
- OD Ntau:219mm - 3500mm
- Main Application Fields:
- Lub nroog loj - txoj kab uas hla dej, cov kav dej thiab cov kav dej phwj tuaj
- Ntev -txoj kev hla dej, kev ua dej thiab kev tswj dej nyab
- General siv hauv paus piling, choj piling, steel casing thiab cofferdam tej yaam num (ASTM A252)
- Tsawg-siab hauv nroog gas faib network thiab cov kav dej txuas ntxiv
- Dredging pipelines, tailing slurry thiab mine conveying pipelines
- Loj - cov phiaj xwm pej xeem cov phiaj xwm loj nrog kev tswj nyiaj txiag
- Tsis haum rau:High-siab siab lub ntsiab gas pipelines, subsea pipelines thiab tseem ceeb heev low-kub lub zog tej yaam num.
SMLS Seamless Steel Yeeb Nkab
- Ntau lawm Feature:Kub dov / kub extruded los ntawm cov khoom steel billet,tsis muaj weld seam. Nws muaj lub siab tshaj plaws kev tiv thaiv thiab cov qauv kev ruaj ntseg.
- OD Ntau:Max tsis tu ncua ntau lawm OD Tsawg dua lossis sib npaug rau 914mm
- Main Application Fields:
- High -kub thiab siab - cov txheej txheem siab rau cov nroj tsuag tshuaj, refineries thiab fais fab mov
- Boiler tubes, superheated steam pipelines thiab siab - hydraulic pipelines
- Oilfield wellhead pipelines thiab siab - cov kab sib sau ua ke
- Cov kev pabcuam qaub thiab corrosive nruab nrab industrial pipelines
- Siab - siab chiv thiab petrochemical khoom piping systems
- Tsis haum rau:Loj - txoj kab uas hla ntev - kis tau tus mob nyob deb li cas vim yog tus nqi siab heev thiab muaj peev xwm tsim tau tsawg.
FAQ
Q: Koj cov kav dej puas tuaj yeem siv rau cov haujlwm faus hauv av?
A: Yog. Peb muab tag nrho cov tshuaj tiv thaiv -corrosion coatings nrog rau 3LPE, FBE, thee-tar epoxy thiab cov cement mortar hauv ob sab phlu. Txhua cov kav dej coated yog tsim tshwj xeeb rau kev ua haujlwm ntev - faus hauv av.
Q: Cov nqe lus them nqi twg koj txais?
A: T / T thiab Irrevocable L / C thaum pom muaj.
Q: Yuav ua li cas daws cov teeb meem zoo tom qab tau txais cov khoom?
A: Peb muab sijhawm ntev -lub sijhawm tom qab- muag lav. Yog tias muaj teeb meem zoo tau lees paub vim peb cov laj thawj tsim khoom, peb yuav lees txais lub luag haujlwm tag nrho rau kev hloov lossis nyiaj them.
Q: Ntev npaum li cas 3LPE txheej tuaj yeem nyob hauv av?
A: Ntau tshaj 30 xyoo kev pab cuam lub neej raws li tus qauv hauv av hauv av, dav lees paub tias yog qhov kev ntseeg siab tshaj plaws los tiv thaiv -corrosion tov rau ntev - deb faus pipelines.
